| Brand Name: | OEM |
| Model Number: | KP200A |
| MOQ: | 2 sets |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets |

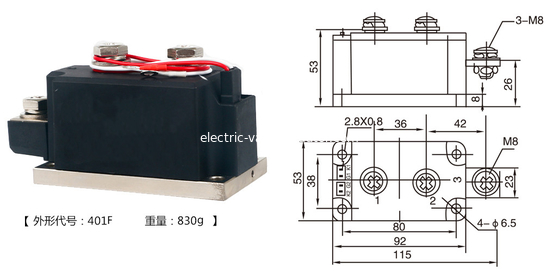

Thyristor module MTC600A 2000V/1600V Semiconductor rectifier double direction
Characteristic:
■ Production workshop Ten thousand level dust-free workshop
■ Full crimping structure, excellent temperature characteristics and power circulation capability
■ Fully automatic vacuum silicon gel and epoxy double dispenser glue filling
■ Modules below 350A are forced air cooling, while modules above 500A can be either air cooling or water cooling
■ Chip and backplane electrical insulation AC voltage 2500VAC
■ High heat conductive packaging
| model |
Output current resistance load |
Output current load |
Heat sink |
With heat sink 3pcs group |
| MTC25A |
20A |
13A |
100x80x50 |
120x125x135 with fan |
| MTC55A |
44A |
28A |
100x80x50 |
120x125x135 with fan |
| MTC70A |
56A |
35A |
115x100x80 |
120x125x135 with fan |
| MTC90A |
72A |
45A |
115x100x80 |
120x125x135 with fan |
| MTC110A |
88A |
55A |
150x100x80 |
150x125x135 with fan |
| MTC130A |
104A |
65A |
150x100x80 |
150x125x135 with fan |
| MTC160A |
128A |
80A |
150x100x80with fan |
200x125x135 with fan |
| MTC200A small |
150A |
100A |
150x100x80with fan |
300x125x135 with fan |
| MTC200A |
150A |
100A |
150x100x80with fan |
300x125x135 with fan |
| MTC250A |
200A |
125A |
150x125x135with fan |
360x125x135 with fan |
| MTC300A |
240A |
150A |
150x125x135with fan |
390x125x135with fan |
| MTC400A |
320A |
200A |
200x125x135with fan |
450x141x135with fan |
| MTC500A |
400A |
250A |
200x125x135with fan |
450x141x135with fan |
| MTC600A |
480A |
300A |
250x125x135with fan |
NO |
| MTC800A |
640A |
400A |
250x125x135with fan |
NO |
| MTC1000A |
800A |
500A |
250x125x135with fan |
NO |
| MTC1500A |
1200A |
750A |
300x125x135with fan |
NO |
| MTC2000A |
1400A |
1000A |
400x141x135with fan |
NO |
