| Brand Name: | OEM |
| Model Number: | KP200A |
| MOQ: | 2 sets |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets |

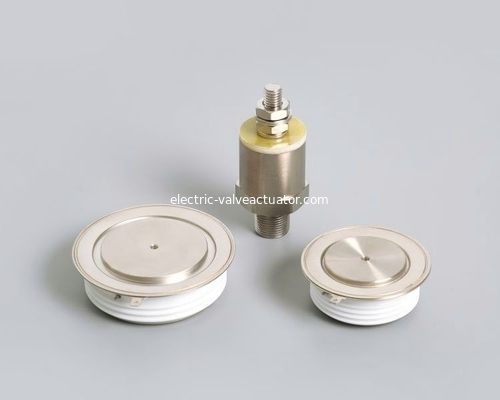

KP1500A1600V single phase high-power flat thyristor
characteristic:
■ Production workshop Ten thousand level dust-free workshop
■ Full crimping structure, excellent temperature characteristics and power circulation capability
■ Fully automatic vacuum silicon gel and epoxy double dispenser glue filling
■ Modules below 350A are forced air cooling, while modules above 500A can be either air cooling or water cooling
■ Chip and backplane electrical insulation AC voltage 2500VAC
■ High heat conductive packaging

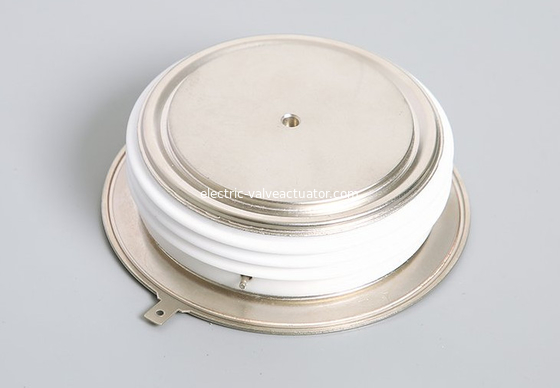

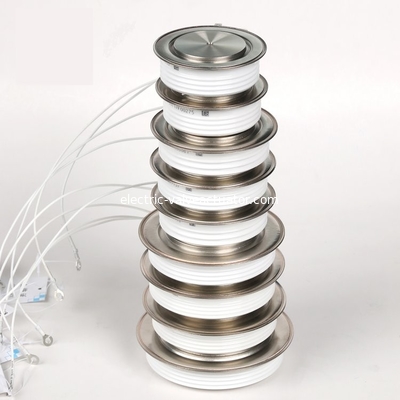

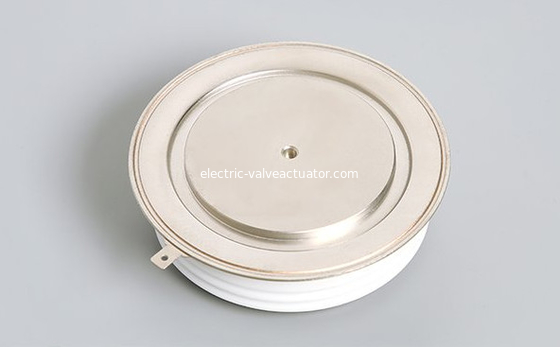

KP200A—500A flat type thyristor
| Type | VDRM VRRM |
IT(AV) @80℃ |
VTM @ITM (max) |
IGT (max) |
VGT (max) |
IDRM (max)
|
IH (max) |
Tjm |
ITSM @10ms |
I2t @10ms |
dv/dt (min) |
di/dt (min) |
Rthjc (max) |
Dimension |
| (V) | (A) | (V/A) | (mA) | (V) | (mA) | (mA) | ℃ | (KA) | (KA2S) | (V/μS) | (A/μS) | (℃/W) | ||
| KP200-30KA2 | 500-1800 | 200 | 2.0 /600 | 200 | 2.2 | 20 | 20-200 | 125 | 3.8 | 31 | 200 | 100 | 0.055 | KA2 |
| KP200-30KT1 | 500-2500 | 200 | 2.0/600 | 200 | 2.2 | 20 | 20-200 | 125 | 3.8 | 31 | 200 | 100 | 0.055 | KT1 |
| KP200-30KT2 | 500-2500 | 200 | 2.0 /600 | 200 | 2.2 | 20 | 20-200 | 125 | 3.8 | 31 | 200 | 100 | 0.055 | KT2 |
| *KP200-30KT3 | 2600-3400 | 200 | 2.4 /600 | 200 | 2.2 | 20 | 20-200 | 125 | 3.8 | 31 | 200 | 100 | 0.055 | KT3 |
| KP300-35KA3 | 500-1800 | 300 | 2.0 /900 | 200 | 2.2 | 25 | 20-200 | 125 | 5 | 70 | 200 | 100 | 0.04 | KA3 |
| KP300-35KT1 | 500-2000 | 300 | 2.0 /900 | 200 | 2.2 | 25 | 20-200 | 125 | 5 | 70 | 200 | 100 | 0.04 | KT1 |
| KP300-35KT2 | 2000-2500 | 300 | 2.2 /900 | 200 | 2.2 | 25 | 20-200 | 125 | 5 | 70 | 200 | 100 | 0.04 | KT2 |
| *KP300-30KT3 | 2600-3400 | 300 | 2.4 /900 | 200 | 2.2 | 25 | 20-200 | 125 | 3.8 | 70 | 200 | 100 | 0.04 | KT3 |
| *KP300-38KT4 | 3600-4200 | 300 | 2.6 /900 | 200 | 2.2 | 30 | 20-200 | 125 | 6.4 | 70 | 200 | 100 | 0.04 | KT4 |
| KP500-40KA4 | 500-2200 | 500 | 2.2 /1500 | 220 | 2.2 | 30 | 20-250 | 125 | 7.6 | 210 | 500 | 150 | 0.035 | KA4 |
| KP500-40KT5 | 500-2200 | 500 | 2.2 /1500 | 220 | 2.2 | 30 | 20-250 | 125 | 7.6 | 210 | 500 | 150 | 0.035 | KT5 |
| KP500-45KT6 | 2400-3400 | 500 | 2.6 /1500 | 220 | 2.2 | 30 | 20-250 | 125 | 10 | 210 | 500 | 150 | 0.030 | KT6 |
| *KP500-50KT11 | 3600-6500 | 500 | 3.6 /1500 | 200 | 2.2 | 40 | 20-250 | 125 | 13 | 210 | 500 | 150 | 0.024 | KT11 |
