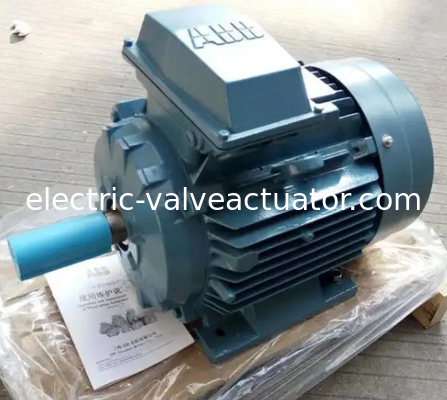

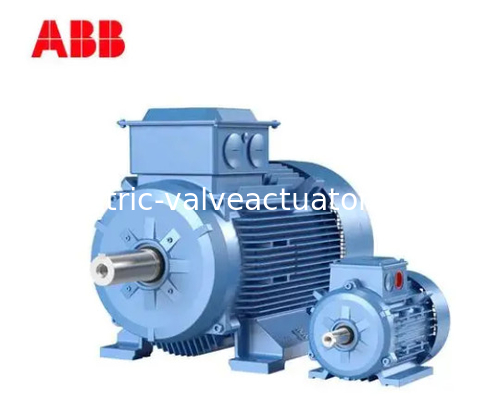

ABB Motor M2QA 180L Industrial Electric 3 Phase Motors With IP55 Protection

Product Description:

ABB motors provide the perfect motor for every powered application, while guaranteeing reliability, premium operation and durability by incorporating the most recent technologies. In addition to specified applications for enhanced performance, each motor can withstand the most demanding environment for heavy duty use.

Features:

M -- Machine base length 2-- Number of poles A -- Iron core length
Usage conditions
①. Altitude not exceeding 1000m
②. The ambient air temperature varies with the seasons, but does not exceed+40 ℃
③. Voltage, frequency, and operating mode
Working voltage: 220-240V, 380-420V, 440-480V, 660-690V
④. Rated frequency: 50/60Hz
⑤. Working mode: Continuous (S1)
⑥. Insulation level: F
4. Bearing model (NSK bearing) (SKF bearing is optional)

Technical Parameters:

Applications:

M2QA 180L8A-XXX * 3GQA 184501-XXX * 415V50Hz 11kW 730r/min
M2QA 200L8A-XXX * 3GQA 204501-XXX * 415V50Hz 15kW 730r/min
M2QA 225S8A-XXX * 3GQA 224101-XXX * 415V50Hz 18.5kW 740r/min
M2QA 225M8A-XXX * 3GQA 224301-XXX * 415V50Hz 22kW 740r/min
M2QA 250M8A-XXX * 3GQA 254301-XXX * 415V50Hz 30kW 735r/min
M2QA 280S8A-XXX * 3GQA 284101-XXX * 415V50Hz 37kW 745r/min
M2QA 280M8A-XXX * 3GQA 284301-XXX * 415V50Hz 45kW 745r/min
M2QA 315S8A-XXX * 3GQA 314101-XXX * 415V50Hz 55kW 740r/min
M2QA 315M8A-XXX * 3GQA 314301-XXX * 415V50Hz 75kW 740r/min
M2QA 315L8A-XXX * 3GQA 314501-XXX * 415V50Hz 90kW 740r/min
M2QA 315L8B-XXX * 3GQA 314502-XXX * 415V50Hz 110kW 740r/min
M2QA 355M8A-XXX * 3GQA 354301-XXX * 415V50Hz 132kW 740r/min
M2QA 355M8B-XXX * 3GQA 354302-XXX * 415V50Hz 160kW 740r/min
M2QA 355L8A-XXX * 3GQA 354501-XXX * 415V50Hz 200kW 740r/min
M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 0.43kW 3350r/min
M2QA 71M2B-XXX * 3GQA 071302-XXX * 460V60Hz 0.63kW 3350r/min
M2QA 80M2A-XXX * 3GQA 081301-XXX * 460V60Hz 0.86kW 3420r/min
M2QA 80M2B-XXX * 3GQA 081302-XXX * 460V60Hz 1.27kW 3430r/min
M2QA 90S2A-XXX * 3GQA 091101-XXX * 460V60Hz 1.73kW 3420r/min
M2QA 90L2A-XXX * 3GQA 091501-XXX * 460V60Hz 2.53kW 3440r/min
M2QA 100L2A-XXX * 3GQA 101501-XXX * 460V60Hz 3.45kW 3450r/min
M2QA 112M2A-XXX * 3GQA 111301-XXX * 460V60Hz 4.6kW 3475r/min
M2QA 132S2A-XXX * 3GQA 131101-XXX * 460V60Hz 6.33kW 3500r/min
M2QA 132S2B-XXX * 3GQA 131102-XXX * 460V60Hz 8.6kW 3510r/min
M2QA 160M2A-XXX * 3GQA 161301-XXX * 460V60Hz 12.7kW 3515r/min
M2QA 160M2B-XXX * 3GQA 161302-XXX * 460V60Hz 17.3kW 3515r/min
M2QA 160L2A-XXX * 3GQA 161501-XXX * 460V60Hz 21.3kW 3520r/min
M2QA 180M2A-XXX * 3GQA 181301-XXX * 460V60Hz 25.3kW 3540r/min
M2QA 200L2A-XXX * 3GQA 201501-XXX * 460V60Hz 34.5kW 3550r/min
M2QA 200L2B-XXX * 3GQA 201502-XXX * 460V60Hz 42.6kW 3550r/min
M2QA 71M2A-XXX * 3GQA 071301-XXX * 460V60Hz 51.8kW 3570r/min
M2QA 250M2A-XXX * 3GQA 251301-XXX * 460V60Hz 63kW 3560r/min
M2QA 280S2A-XXX * 3GQA 281101-XXX * 460V60Hz 86kW 3570r/min
M2QA 280M2A-XXX * 3GQA 281301-XXX * 460V60Hz 104kW 3570r/min
M2QA 315S2A-XXX * 3GQA 311101-XXX * 460V60Hz 127kW 3575r/min
M2QA 315M2A-XXX * 3GQA 311301-XXX * 460V60Hz 152kW 3575r/min
M2QA 315L2A-XXX * 3GQA 311501-XXX * 460V60Hz 184kW 3575r/min
M2QA 315L2B-XXX * 3GQA 311502-XXX * 460V60Hz 230kW 3575r/min
M2QA 355M2A-XXX * 3GQA 351301-XXX * 460V60Hz 287.5kW 3580r/min
M2QA 355L2A-XXX * 3GQA 351501-XXX * 460V60Hz 362.5kW 3580r/min
M2QA 71M4A-XXX * 3GQA 072301-XXX * 460V60Hz 0.29kW 1665r/min
M2QA 71M4B-XXX * 3GQA 072302-XXX * 460V60Hz 0.43kW 1670r/min
M2QA 80M4A-XXX * 3GQA 082301-XXX * 460V60Hz 0.63kW 1695r/min
M2QA 80M4B-XXX * 3GQA 082302-XXX * 460V60Hz 0.86kW 1690r/min
M2QA 90S4A-XXX * 3GQA 092101-XXX * 460V60Hz 1.27kW 1695r/min
M2QA 90L4A-XXX * 3GQA 092501-XXX * 460V60Hz 1.73kW 1700r/min
M2QA 100L4A-XXX * 3GQA 102501-XXX * 460V60Hz 2.53kW 1730r/min
M2QA 100L4B-XXX * 3GQA 102502-XXX * 460V60Hz 3.45kW 1725r/min
M2QA 112M4A-XXX * 3GQA 112301-XXX * 460V60Hz 4.6kW 1735r/min
M2QA 132S4A-XXX * 3GQA 132101-XXX * 460V60Hz 6.33kW 1735r/min
M2QA 132M4A-XXX * 3GQA 132301-XXX * 460V60Hz 8.6kW 1735r/min
M2QA 160M4A-XXX * 3GQA 162301-XXX * 460V60Hz 12.7kW 1755r/min
M2QA 160L4A-XXX * 3GQA 162501-XXX * 460V60Hz 17.3kW 1750r/min
M2QA 180M4A-XXX * 3GQA 182301-XXX * 460V60Hz 21.3kW 1770r/min
M2QA 180L4A-XXX * 3GQA 182501-XXX * 460V60Hz 25.3kW 1770r/min
M2QA 200L4A-XXX * 3GQA 202501-XXX * 460V60Hz 34.5kW 1775r/min
M2QA 225S4A-XXX * 3GQA 222101-XXX * 460V60Hz 42.6kW 1780r/min
M2QA 225M4A-XXX * 3GQA 222301-XXX * 460V60Hz 51.8kW 1780r/min
M2QA 250M4A-XXX * 3GQA 252301-XXX * 460V60Hz 63kW 1775r/min
M2QA 280S4A-XXX * 3GQA 282101-XXX * 460V60Hz 86kW 1780r/min
M2QA 280M4A-XXX * 3GQA 282301-XXX * 460V60Hz 104kW 1780r/min
M2QA 315S4A-XXX * 3GQA 312101-XXX * 460V60Hz 127kW 1780r/min
M2QA 315M4A-XXX * 3GQA 312301-XXX * 460V60Hz 152kW 1780r/min
M2QA 315L4A-XXX * 3GQA 312501-XXX * 460V60Hz 184kW 1780r/min
M2QA 315L4B-XXX * 3GQA 312502-XXX * 460V60Hz 230kW 1780r/min
M2QA 355M4A-XXX * 3GQA 352301-XXX * 460V60Hz 287.5kW 1785r/min
M2QA 355L4A-XXX * 3GQA 352501-XXX * 460V60Hz 362.5kW 1790r/min
M2QA 71M6A-XXX * 3GQA 073301-XXX * 460V60Hz 0.21kW 1060r/min
M2QA 71M6B-XXX * 3GQA 073302-XXX * 460V60Hz 0.29kW 1060r/min
M2QA 80M6A-XXX * 3GQA 083301-XXX * 460V60Hz 0.43kW 1105r/min
M2QA 80M6B-XXX * 3GQA 083302-XXX * 460V60Hz 0.63kW 1115r/min
M2QA 90S6A-XXX * 3GQA 093101-XXX * 460V60Hz 0.86kW 1115r/min
M2QA 90L6A-XXX * 3GQA 093501-XXX * 460V60Hz 1.27kW 1110r/min
M2QA 100L6A-XXX * 3GQA 103501-XXX * 460V60Hz 1.73kW 1135r/min
M2QA 112M6A-XXX * 3GQA 113301-XXX * 460V60Hz 2.53kW 1140r/min
M2QA 132S6A-XXX * 3GQA 133101-XXX * 460V60Hz 3.45kW 1145r/min
M2QA 132M6A-XXX * 3GQA 133301-XXX * 460V60Hz 4.6kW 1150r/min
M2QA 132M6B-XXX * 3GQA 133302-XXX * 460V60Hz 6.33kW 1150r/min
M2QA 160M6A-XXX * 3GQA 163301-XXX * 460V60Hz 8.6kW 1165r/min
M2QA 160L6A-XXX * 3GQA 163501-XXX * 460V60Hz 12.7kW 1165r/min
M2QA 180L6A-XXX * 3GQA 183501-XXX * 460V60Hz 17.3kW 1175r/min
M2QA 200L6A-XXX * 3GQA 203501-XXX * 460V60Hz 21.3kW 1175r/min
M2QA 200L6B-XXX * 3GQA 203502-XXX * 460V60Hz 25.3kW 1175r/min
M2QA 225M6A-XXX * 3GQA 223301-XXX * 460V60Hz 34.5kW 1185r/min
M2QA 250M6A-XXX * 3GQA 253301-XXX * 460V60Hz 42.6kW 1180r/min
M2QA 280S6A-XXX * 3GQA 283101-XXX * 460V60Hz 51.8kW 1180r/min
M2QA 280M6A-XXX * 3GQA 283301-XXX * 460V60Hz 63kW 1180r/min
M2QA 315S6A-XXX * 3GQA 313101-XXX * 460V60Hz 86kW 1185r/min
M2QA 315M6A-XXX * 3GQA 313301-XXX * 460V60Hz 104kW 1185r/min
M2QA 315L6A-XXX * 3GQA 313501-XXX * 460V60Hz 127kW 1185r/min
M2QA 315L6B-XXX * 3GQA 313502-XXX * 460V60Hz 152kW 1185r/min
M2QA 450M6A-XXX * 3GQA 453301-XXX * 460V60Hz 184kW 1190r/min
M2QA 450M6B-XXX * 3GQA 453302-XXX * 460V60Hz 230kW 1190r/min
M2QA 450L6A-XXX * 3GQA 453501-XXX * 460V60Hz 287.5kW 1190r/min
M2QA 80M8A-XXX * 3GQA 084301-XXX * 460V60Hz 0.21kW 825r/min
M2QA 80M8B-XXX * 3GQA 084302-XXX * 460V60Hz 0.29kW 825r/min
M2QA 90S8A-XXX * 3GQA 094101-XXX * 460V60Hz 0.43kW 835r/min
M2QA 90L8A-XXX * 3GQA 094501-XXX * 460V60Hz 0.63kW 835r/min
M2QA 100L8A-XXX * 3GQA 104501-XXX * 460V60Hz 0.86kW 840r/min
M2QA 100L8B-XXX * 3GQA 104502-XXX * 460V60Hz 1.27kW 830r/min
M2QA 112M8A-XXX * 3GQA 114301-XXX * 460V60Hz 1.73kW 845r/min
M2QA 132S8A-XXX * 3GQA 134101-XXX * 460V60Hz 2.53kW 860r/min
M2QA 132M8A-XXX * 3GQA 134301-XXX * 460V60Hz 3.45kW 855r/min
M2QA 160M8A-XXX * 3GQA 164301-XXX * 460V60Hz 4.6kW 865r/min
M2QA 160M8B-XXX * 3GQA 164302-XXX * 460V60Hz 6.33kW 865r/min
M2QA 160L8A-XXX * 3GQA 164501-XXX * 460V60Hz 8.6kW 865r/min
M2QA 180L8A-XXX * 3GQA 184501-XXX * 460V60Hz 12.7kW 880r/min
M2QA 200L8A-XXX * 3GQA 204501-XXX * 460V60Hz 17.3kW 880r/min
M2QA 225S8A-XXX * 3GQA 224101-XXX * 460V60Hz 21.3kW 885r/min
M2QA 225M8A-XXX * 3GQA 224301-XXX * 460V60Hz 25.3kW 885r/min
M2QA 250M8A-XXX * 3GQA 254301-XXX * 460V60Hz 34.5kW 880r/min
M2QA 280S8A-XXX * 3GQA 284101-XXX * 460V60Hz 42.6kW 885r/min
M2QA 280M8A-XXX * 3GQA 284301-XXX * 460V60Hz 51.8kW 885r/min
M2QA 315S8A-XXX * 3GQA 314101-XXX * 460V60Hz 63kW 890r/min
M2QA 315M8A-XXX * 3GQA 314301-XXX * 460V60Hz 86kW 890r/min
M2QA 315L8A-XXX * 3GQA 314501-XXX * 460V60Hz 104kW 890r/min
M2QA 315L8B-XXX * 3GQA 314502-XXX * 460V60Hz 127kW 890r/min
M2QA 355M8A-XXX * 3GQA 354301-XXX * 460V60Hz 152kW 890r/min
M2QA 355M8B-XXX * 3GQA 354302-XXX * 460V60Hz 184kW 890r/min
M2QA 355L8A-XXX * 3GQA 354501-XXX * 460V60Hz 230kW 890r/min
