| Brand Name: | TYCO |
| Model Number: | KUEP-3D35-24 |
W23 are UL 1077 Recognized as Supplementary Protectors.File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.Users should thoroughly review the technical data before selecting a product part number. It is recommended that users also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application.
Maximum Operating Voltages: 50VDC or 240VAC (to 400 Hz).
Interrupting Capacity:
With 4X Max. Series Fuse Protection
0.5-50 amp models — 1000 amps at 240VAC.
30-50 amp models — 1000 amps at 50VDC.
Without 4X Max. Series Fuse Protection
0.5-25 amp models — 2000 amps at 50VDC.
10-20 amp models — 2000 amps at 120VAC.
Resettable Overload Capacity: Ten times rated current.
Dielectric Strength: Over 1,500 volts RMS.
Mechanical/Environmental Data
Endurance Cycling: More than 6,000 cycles at *** of rating, or 10,000
mechanical cycles.
Humidity: Will meet requirements of MIL-STD-202, Method 106.
Salt Spray: Will meet requirements of MIL-STD-202, Method 101, Test
Condition B.
Termination: Two #8-32 screw terminals.
Mounting: W23 — Threaded bushing, 3/8” (9.53mm) diameter.
W31 — Threaded bushing, 15/32” (11.91mm) diameter, with or
without anti-rotation flats.
Weight: Less than 2 oz. (57g).
| Brand: | TE |

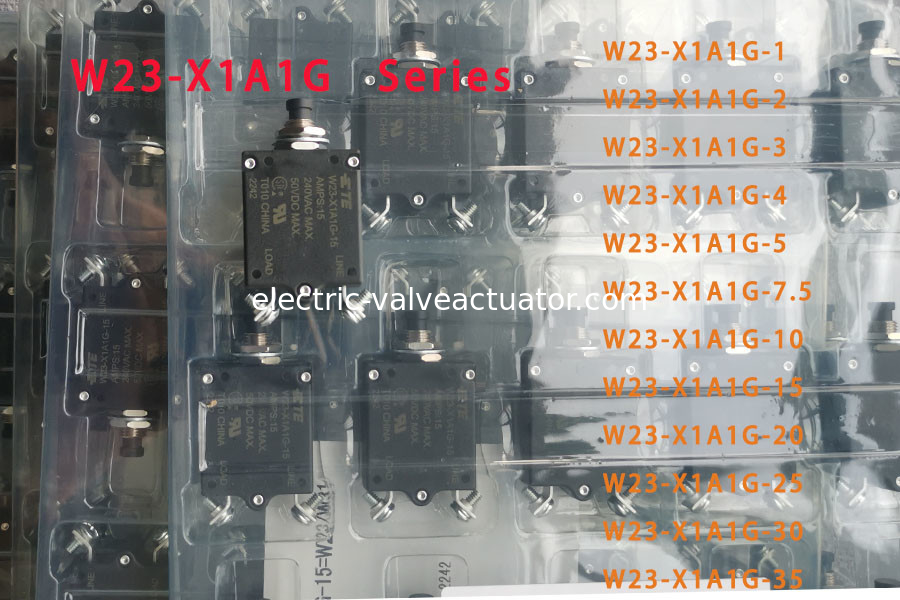

| Model: | W23-X1A1G-20 |
| Qty.: | 25600 |
| Manufacture: | TE Connectivity |
| type: | circuit breaker |
| RoHS: | YES |
| series: | W23 |
| rated current: | 20 A |
| rated voltage AC: | 240 VAC |
| rated voltage DC: | 50 VDC |
| pole: | 1 Pole |
| actuator type: | Pushbutton |
| min. working temperature: | - 20 C |
| max. working temperature: | + 60 C |
| light: | Not Illuminated |
| Height: | 35.15 mm |
| Length: | 40.64 mm |
| contactor: | Screw |
| rated voltage: | 50 V |
| width: | 17.53 mm |
| install: | Panel Mount |
| standard: | UL |
| Code : | 6-1393246-8 6-1393246-8 |
| weight: | 57 g |
TYCO electronic control relays are ideal for industrial applications. With model number KUEP-3D35-24, they offer a voltage range of 12V/24V/220V, a life span of more than 100,000 times, operating temperature from -25℃ to 70℃, a coil resistance of 50Ω to 1000Ω, and contact capacity of 5A/10A/15A/20A. With great performance, Tyco relays KUEP-11D15-24 TE Connectivity, Tyco relays KUP-14A55-120 TE Connectivity, and Tyco relays KUP-14A35F-120 TE Connectivity are widely used in automated control systems, such as robotics, automation machines, and smart home systems.
We provide comprehensive technical support and service for our Electronic Control Relay products. Our team of experienced engineers is available to answer any questions you may have about our products and troubleshoot any issues you may be having.
We also provide maintenance and repair services for our Electronic Control Relay products. Our team of technicians is highly trained and knowledgeable in all aspects of the product and can provide quick and reliable service for any issue that may arise.
We also offer customer support for any questions or inquiries regarding our products. Our customer service team is available to assist you with any questions you may have and provide any additional information you may need.
If you have any questions or need any assistance with our Electronic Control Relay products, please contact us and our team of experts will be happy to help.
Electronic Control Relays are carefully packaged to ensure safe delivery. Each item is placed in a protective box, lined with foam, and sealed with tape. Boxes are then placed in a larger cardboard box with additional packing materials. Shipping is done via UPS or FedEx and tracking information will be provided.
