| Brand Name: | OEM |
| Model Number: | YD series |
| MOQ: | 1 set |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets/month |

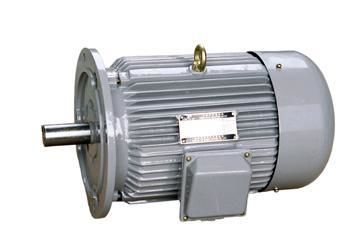

YD series insulation class multi speed three 3 Phase Electric Motors YD90L, YD802 for combination machine tools, blowers, pumps and other kinds of devices whose speed needs to be changed
Specifications:
|
Type |
Synchronous speed(r/min) |
||||||||
|
1500/3000 |
1000/1500 |
750/1500 |
750/1000 |
500/1000 |
1000/ 1500/3000 |
750/1000/3000 |
750/ 1000/1500 |
500/750/1000/1500 |
|
|
Poles |
|||||||||
|
4/2 |
6/4 |
8/4 |
8/6 |
12/6 |
6/4/2 |
8/4/2 |
8/6/4 |
12/8/6/4 |
|
|
Power(kW) |
|||||||||
|
YD801 |
0.45/0.55 |
|
|
|
|
|
|
|
|
|
YD802 |
0.55/0.75 |
||||||||
|
YD90S |
0.85/1.1 |
0.65/0.85 |
|
0.35/0.45 |
|
|
|
|
|
|
YD90L |
1.3/1.8 |
0.85/1.1 |
0.45/0.75 |
0.45/0.65 |
|
|
|
|
|
|
YD100L1 |
2/2.4 |
1.3/1.8 |
0.85/1.5 |
0.75/1.1 |
|
0.75/1.3/1.8 |
|
|
|
|
YD100L2 |
2.4/3 |
1.5/2.2 |
|||||||
|
YD112M |
3.3/4 |
2.2/2.8 |
1.5/2.4 |
1.3/1.8 |
|
1.1/2/2.4 |
0.65/2/2.4 |
0.85/1/1.5 |
|
|
YD132S |
4.5/5.5 |
3/4 |
2.2/3.3 |
1.8/2.4 |
|
1.8/2.6/3 |
1/2.6/3 |
1.1/1.5/1.8 |
|
|
YD132M1 |
6.5/8 |
4/5.5 |
3/4.5 |
2.6/3.7 |
|
2.2/3.3/4 |
1.3/3.7/4.5 |
1.5/2/2.2 |
|
|
YD132M2 |
2.6/4/5 |
1.8/2.6/3 |
|||||||
|
YD160M |
9/11 |
6.5/8 |
5/7.5 |
4.5/6 |
2.6/5 |
3.7/5/6 |
2.2/5/6 |
3.3/4/5.5 |
|
|
YD160L |
11/14 |
9/11 |
7/11 |
6/8 |
3.7/7 |
4.5/7/9 |
2.8/7/9 |
4.5/6/7.5 |
|
|
YD180M |
15/18.5 |
11/14 |
|
7.5/10 |
|
|
|
|
|
|
YD180L |
18.5/22 |
13/16 |
11/17 |
9/12 |
5.5/10 |
|
|
7/9/12 |
3.3/5/6.5/9 |
|
YD200L1 |
26/30 |
18.5/22 |
14/22 |
12/17 |
7.5/13 |
|
|
10/13/17 |
4.5/7/8/11 |
|
YD200L2 |
17/26 |
15/20 |
9/15 |
|
|
5.5/8/10/13 |
|||
|
YD225S |
32/37 |
22/28 |
|
|
|
|
|
14/18.5/24 |
|
|
YD225M |
37/45 |
26/32 |
24/34 |
|
12/20 |
|
|
17/22/28 |
7/11/13/20 |
|
YD250M |
45/52 |
32/42 |
30/42 |
|
15/24 |
|
|
24/26/34 |
9/14/16/26 |
|
YD280S |
60/72 |
42/55 |
40/55 |
|
20/30 |
|
|
30/34/42 |
11/18.5/20/34 |
|
YD280M |
72/82 |
55/67 |
47/67 |
|
24/37 |
|
|
34/37/50 |
13/22/24/40 |
Descrition:
The overall and mounting dimensions, insulation class, degree of protection and method of cooling of the YD series motors are the same as the Y series motors, The mounting dimensions are in fully conformity with the IEC and DIN42673 standards, The rated output, starting performance, efficiency and power factor are close to the world advanced level. For YD series motors, there are many distinguished features, small size, light weight, satisfactory performance, easy to control and reliable in operation, as compared with the JD02 series YD motors have higher efficiency, higher power factor, higher starting performance and reduced level of noise and vibration. The YD series pole-changing motors are suitable for driving general purpose or special combination machine tools, blowers, pumps and other kinds of devices whose speed needs to be changed.
