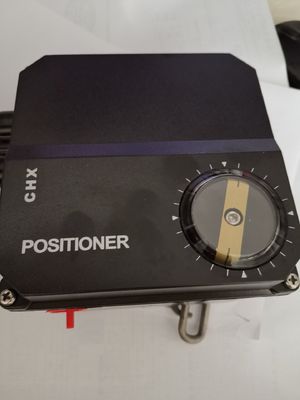

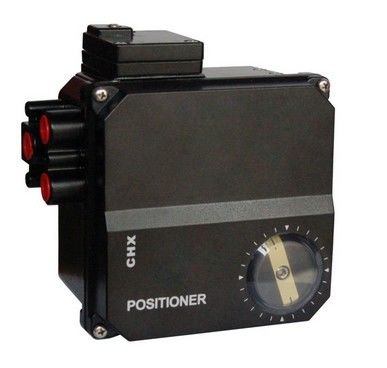

chx700 type electric valve positioner converts the DC signal of 4-20 ma from the regulator or computer io port into aerodynamic force , and drives the regulating valve by single or double acting cylinder to realize angular displacement or linear displacement. The closed loop control is realized through the cam feedback system, which makes the regulating valve realize accurate angular displacement or linear displacement proportional to the input signal.
- Standard input signal 4~20 ma dc 0~20 ma dc
- Range 4~12 ma dc 12~20 ma dc
- Input impedance 220ω±10ω
- Feedback angle 95°
- straight trip : mm 20-140
- control direction positive and counterproductive
- The relationship and linear about trip and signal
- Supply pressure 0.14~0.8 mpa
- Pressure <0.2%/10 kpa on supply
- ambient temperature -25~85℃ -≤0.05%℃ environmental temperature
- Class ip54 of Protection
- gas consumption 0.5 m3n/h
φ4,φ6 of servo slide valve matching actuator
Performance when actuator loads are relatively stable
- dead zone ≤ -0.4%
- lag < 0.7%
- linear<±1%
- Vibration effects (1.5 g –100hz)≤1%
The shell of structural material is treated by glutamic acid and the outer surface is coated with electrostatic powder spray. The cover is polycarbonate, the internal parts are stainless steel and aluminum alloy, both are corrosion resistant materials, and the surface technology is treated.
Incoming interface g1/2 or m20×1.5
Applicable cable φ5–φ10
Airpipe interface zg 1/4"
weight about 2.3 kg
