| Brand Name: | Jianghe |
| Model Number: | DWG |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS / month |

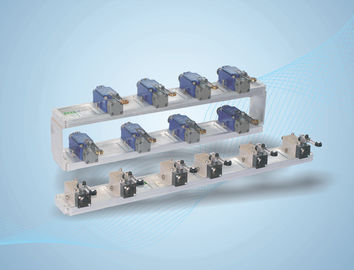

DWG vane position switch, the stroke switch is fixed on the sliding block , offer switch quantity signal
Range : 80~1500mm
Output : 6 mechanical switch
Contact capacity : 250VAC 5A 24VDC 1A
Mounting type : Bracket
Mounting and maintenance :

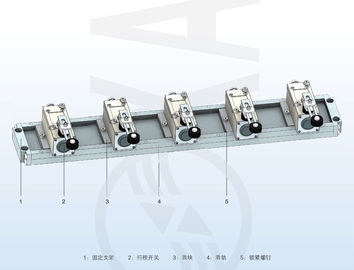

DWG vane position switch inlet stroke switch, guide, slider, installation bracket, the stroke switch is fixed on the sliding block, according to the requirements of users will switch setting in the corresponding position, switch quantity signal of guide vane position, the number of switches can be set according to user requirements, this product has the advantages of simple structure, convenient installation and adjustment. After the measurement point, the position will not change, high reliability, good stability, long service life of the.DWG guide vane position switch structure shown in Figure 1, through the installation of fixed bracket is fixedly connected with the 1 turbine relay device, switch 2 and 3 sliding blocks are fixed together, a sliding block 3 in the rail 4 when free sliding. Need a guide vane in a position signal, the switch slide along the relay device, a push-pull rod block is the travel switch, a signal switch, switch position adjustment, the locking screw 5 slide fastening. By 3. Fixed bracket 1 and turbine servomotor is fixedly connected with the slider, the stroke switch 2 3 fixed together, 3 slide on the guide rail 4 slide freely, when need to send the guide vane in a position signal, the switch slide along the relay device, a push-pull rod block is the trip switch a switch, switch position signal, after adjustment, the locking screw 5 slider 3 fastening.
