| Brand Name: | Jeou Gang |
| Model Number: | DHG-043C2-ET-50-W220/50-10-AB-K |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

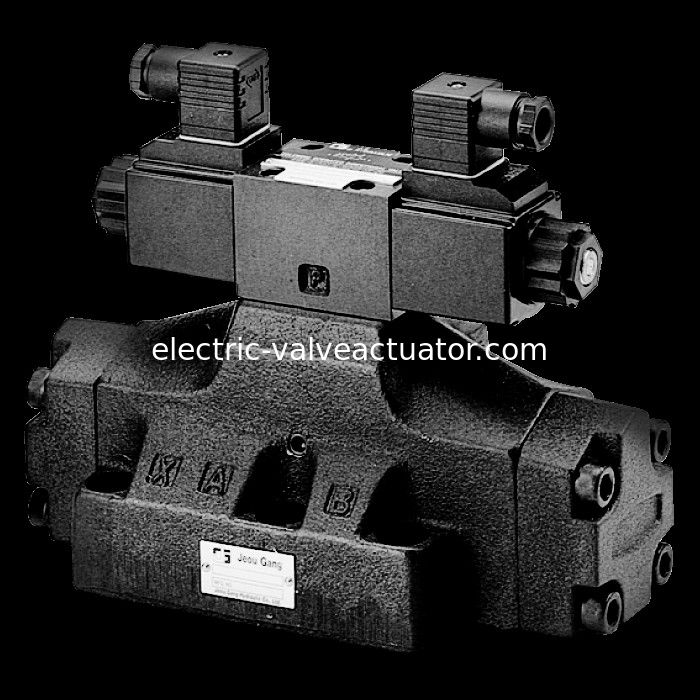

DHG.Solenoid Control Pilot Operated Directional Valves Directional control valves
| MODLE | MAX. FLOW l/min |
MAX. OPERATED kgf/cm2 |
MAX. PILOT kgf/cm2 |
MIN.PILOT kgf/cm2 |
MAX.T-LINE BACK PRES.(kgf/cm2) |
MAX. CHANGE OVER FREQUENCY(Cycles/min) |
|||
|---|---|---|---|---|---|---|---|---|---|
| EXT. DRAIN | INT. DRAIN | AC | DC | R | |||||
| DHG-04-※ | 300 | 315 | 250 | 8 | 210 | 140 | 120 | 120 | 120 |
| DHG-06-※ | 500 | 8 | 210 | 140 | 120 | 120 | 120 | ||
| DHG-10-※ | 1100 | 8 | 210 | 140 | 120 | 120 | 120 | ||
| MODLE | WEIGHT(NO CONTAIN ELECTRO MAGNETIC VALVE) (kg) | |||||
|---|---|---|---|---|---|---|
| AK | ABK | 50 | AK-50 | ABK-50 | ||
| DHG-04-※ | 6.4 | 6.9 | 7.4 | 7.6 | 8.1 | 8.6 |
| DHG-06-※ | 11.7 | 12.7 | 13.2 | |||
| DHG-10-※ | 52.5 | |||||
