| Brand Name: | Jeou Gang |
| Model Number: | SF-G06-ETV |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

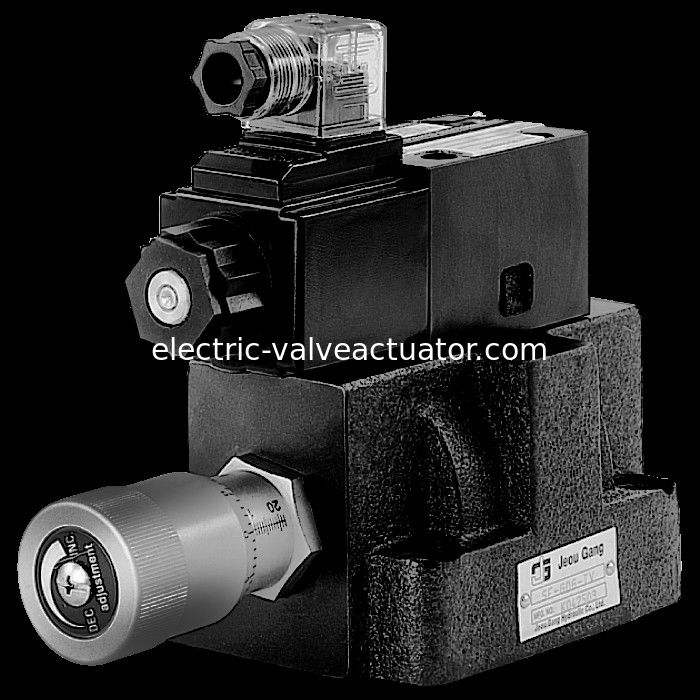

SF,SKF.Solenoid Operated Flow Control Valves releif valve thread connection
| MODLE | MAX.OPERATING PRESSURE (kgf/cm 2) |
MAX. FLOW l/min |
PILOT VALVE TYPE | WEIGHT(NO CONTAIN ELECTRO MAGNETIC VALVE)(kg) |
|---|---|---|---|---|
| SF-G03 | 250 | 60 | 4WE-6Y | 3.0 |
| THF-G03 | 3.0 | |||
| SD-G03 | 4WE-6Y | 3.0 | ||
| SFD-G03 | 4WE-6Y | 2.2 | ||
| SKF-G03 | 4WE-6Y | 3.2 | ||
| SF-G06 | 120 | 4WE-6Y | 5.6 | |
| SDF-G06 | 4WE-6D | 5.6 | ||
| THF-G06 | 5.5 | |||
| SD-G06 | 4WE-6D | 5.1 | ||
| SFD-G06 | 4WE-6Y | 6 | ||
| SKF-G06 | 4WE-6J | 7 | ||
| SF-G10 | 240 | 4WE-6Y | 8.7 | |
| SDF-G10 | 4WE-6D | 8.7 | ||
| THF-G10 | 8.6 | |||
| SD-G10 | 4WE-6D | 8 | ||
| SFD-G10 | 4WE-6Y | 9.3 | ||
| SKF-G10 | 4WE-6Y | 11.2 |
