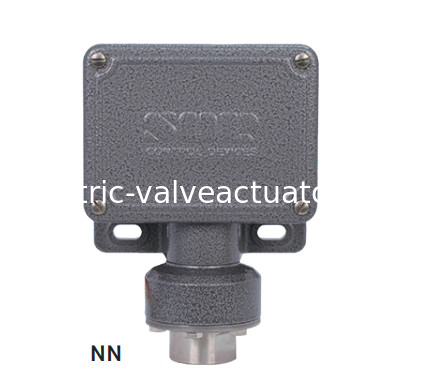

SOR Pressure Switches, 6NN-KK3-M2-C2A; 12-100 PSI
Basic SOR pressure switches with standard wetted parts are normally suitable for air, oil, water
and non-corrosive processes. Corrosive service and particular customer requirements may require
optional components. Refer to How to Order on page 3 to locate optional components, such as,
housing, switching elements, diaphragm systems, pressure ports and accessories. Each position in
the model number, except Accessories, must have a designator.
| Weatherproof
Model Number
|
Adjustable
Range (increasing pressure) psi (in. wc.)
|
| 12NN - N66 - N4 - B1A | (0.6 to 2.5)
|
| 12NN - K614 - N4 - B1A | (2.5 to 45.0)
|
| 12NN - K2 - N4 - B1A | 0.4 to 2.0
|
| 12NN - K4 - N4 - B1A | 0.5 to 6.0
|
| 12NN - K5 - N4 - B1A | 0.75 to 12
|
| 12NN - K45 - N4 - B1A | 1 to 16 |
| Weatherproof Model
Number
|
Adjustable
Range (increasing pressure) psi
|
| 4NN - K2 - N4 - B1A | 2 to 8
|
| 4NN - K4 - N4 - B1A | 2 to 25
|
| 4NN - K5 - N4 - B1A | 3 to 50
|
| 4NN - K45 - N4 - B1A | 4 to 75 |
