| Brand Name: | Original |
| Model Number: | GAPQ3-062 |

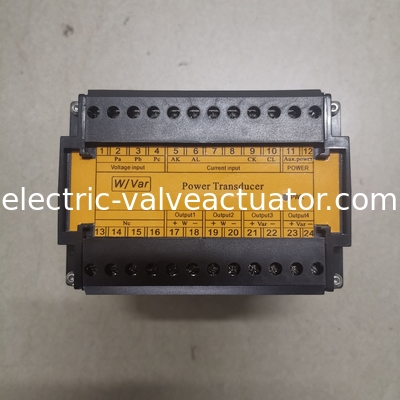

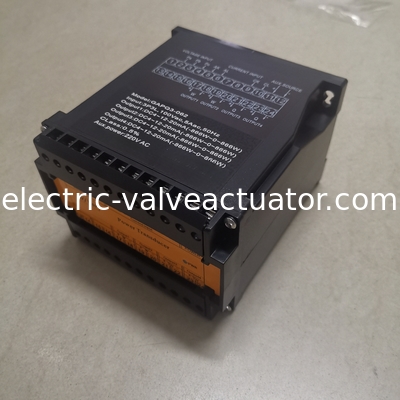

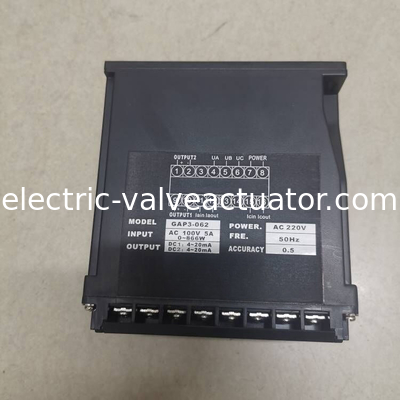

A power transmitter is a device that converts measured electrical parameters (such as current, voltage, power, frequency, power factor, etc.) into DC current, DC voltage, and isolates them to output analog signals.
The product adopts the latest international technology and production process, which can accurately measure various electrical signals in the power grid circuit, isolate and convert them into standard DC voltage and current signals, and send them to A/D PLC,DCS, Secondary instruments can also be used as feedback sampling components in detection, measurement, or control adjustment devices.
| GAA3-062 | GDV-061 |
| G8-V | GWE-08 |
| G2-WC | GWC-061 |
| G2-DA | G4-A |
| G2-3A | G8-3A |
| G5-DA | GAAJ-061 |
| GAA3-062 | GAN3-062 |
| - | - |
Negative sequence current transducer GAN3-062
1,Summarize
Negative sequence current transducer is a kind of device which can transform the alternating current into direct current or voltage while the output is linearly proportional to.the input. It is widely applied to electric equipment, auto control and scheduling systems in the fields of electric power, post, petroleum, coal and charcoal, metallurgy, railway, and city planning .
2,Main technical specifications
Accuracy class: 0.5
Input: 0~5AAC
Output: 4~20mADC
Power supply: 220VAC
Input frequency: 50Hz+0.02Hz
Power dissipation: <3W
Overload input: 2times series, 20times 1 second,
Response time: <350mS
Output load: <500 OHM :
Frequency Withstand Voltage: Input/Output /Supply: AC 2.5KV/min
Insulating resistance: >100M, 500VDC
Impulse voltage: 5KV(peak value)1.2/50uS
Operating condition:
temperature: 0-55C
humidity: 10-93%
Storage condition:
temperature: -40-70℃
humidity: 10-95%%
