| Model Number: | STTT-B |

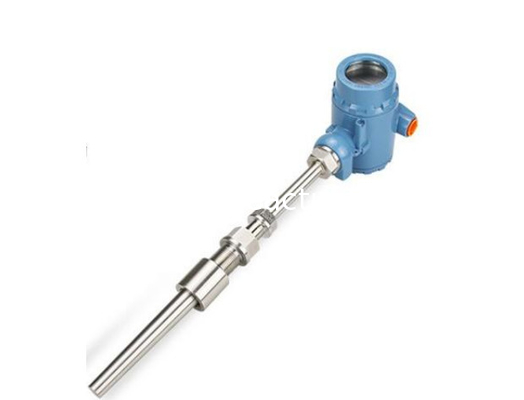

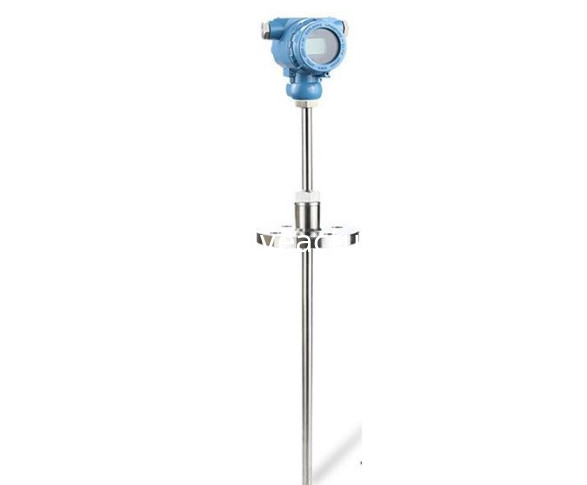

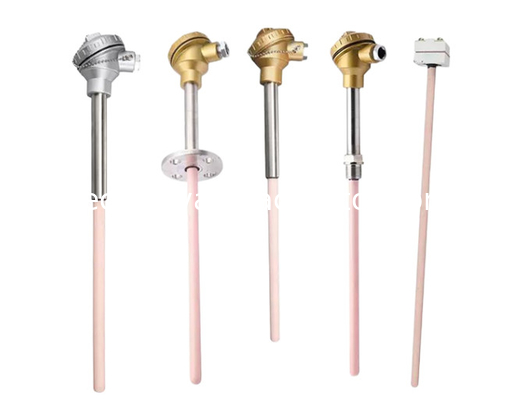

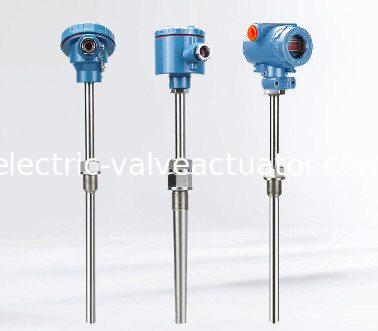

Thermocouple WRN2-630 WRN2-631 WRN2-632 WRN2-633
A thermocouple is a commonly used temperature sensing element in temperature measurement instruments. It directly measures temperature and converts the temperature signal into a thermoelectric potential signal, which is then converted into the temperature of the measured medium by electrical instruments (secondary instruments).
The shapes of various thermocouples can vary greatly depending on the application, but their basic structure is generally similar. They typically consist of a thermoelectric element, insulating sheath, protective tube, and connection box, and are usually used in conjunction with display instruments, recording instruments, and electronic regulators.
Thermocouple WRN2-630 WRN2-631 WRN2-632 WRN2-633 Model
WR |
Thermocouple | Content | ||||
| Code | Heat probe type | |||||
| R | Pt-Rh30- Pt-Rh6 | |||||
| P | Pt-Rh 10-Pt | |||||
| N | Nickel chromium-nickel silicon | |||||
| M | Nickel chromium nickel silicon - silicon | |||||
| E | Nickel chromium - nickel copper | |||||
| C | Copper - Copper - Nickel | |||||
| F | Iron copper nickel | |||||
| Code | Output signal number | |||||
| None 2 |
single double |
|||||
| Code | Fixed device form | |||||
| 1 2 3 4 5 6 7 |
Without fixed device Fixed threaded Movable flange Fixed flange Movable flange square Fixed thread conical Straight pipe joint type |
|||||
| Code | Terminal type | |||||
| 2 3 4 |
Splash proof Waterproof type Explosion proof type |
|||||
| Code | Protection tube diameter | |||||
| 0 | Φ16mm | |||||
| 1 | Φ25mm | |||||
| 2 | Φ16mm | |||||
| 3 | Φ20mm | |||||
If the fixed thread assembly-type Thermocouple WRN2-630 WRN2-631 WRN2-632 WRN2-633 for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
