| Brand Name: | OEM |
| Model Number: | XDL series |
| MOQ: | 1 set |
| Payment Terms: | T/T |

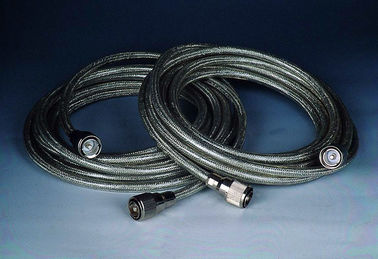

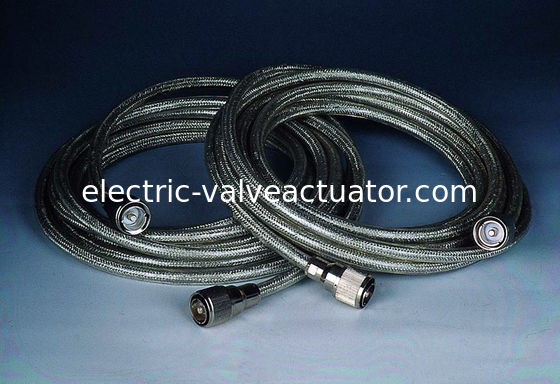

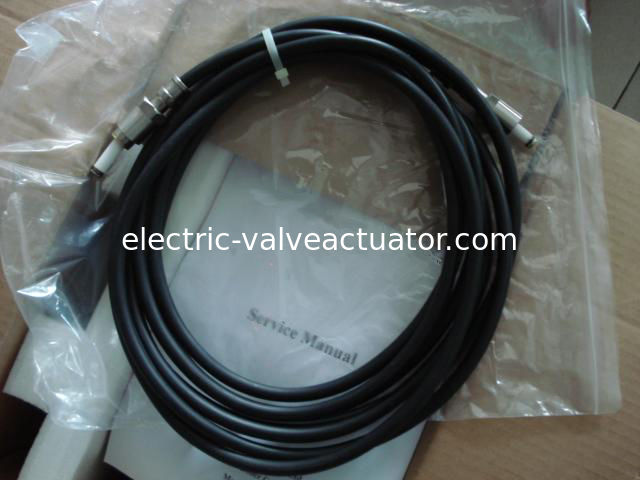

High Voltage Low Resistance XDL-l B Explosion Proof High Performance Ignition System Device Cable Length 2, 3, 6m
1,Product Description: the high energy ignition high-voltage direct current power transmission to ignition guns.
2,Technical advantages and honor
- Low resistance；
- High pressure resistant performance；
- Good insulation properties.
Applications:
As XDH high-energy ignition device assembly
Specifications:
|
Sr. |
Model |
Description |
|
1 |
XDL-l |
Ignition cable |
|
2 |
XDL-l B |
Explosion proof type ignition cable |
|
3 |
XDL-l G |
High pressure gap type ignition cable |
【Note】type code l for ignition cable length User selectable length could be 2,3,6m.1. basic configuration:(leave)2. Performance parameters
Various models of the ignition cable performance parameters:
|
Parameter name |
Unit |
Data |
|
center electrode resistance |
Ω |
≤0.2 |
|
Withstand voltage (50HZ) |
VAC |
≥5000 |
|
Insulation resistance |
MΩ |
≥500 |
3. Outline and mounting dimensions
|
Sr. |
Model |
Dimensions |
|
1 |
XDL-l |
Interface thread is M18×1.5,see drawing 5-1 |
|
2 |
XDL-l B |
Interface thread is M18×1.5,see drawing 5-2 |
|
3 |
XDL-l G |
Interface thread is M18×1.5,see drawing 5-3 |
Drawing 5-1 XDL-lIgnition cable
Drawing 5-2 XDL-l BIgnition cable
Drawing 5-3 XDL-l GIgnition cable
