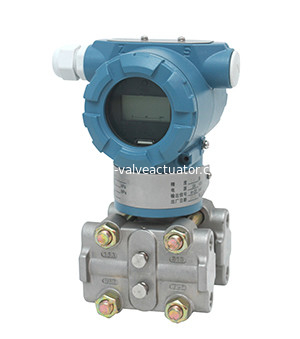

SWP-T61LT flange liquid level transmitter Precise liquid and liquid density measurement
SWP-T61LT
Common flange mounted liquid level transmitter
SWP-T61CLT
Integrated flange mounted liquid level transmitter
Precise liquid and liquid density measurement can be carried out for various containers. Flat flanges and plug-in flanges are available. The installation flange standard is ANSI, the pipe size is 3 inches or 4 inches, the flange specifications are 150Lb (2.5MPa) and 300lb (5MPa), and can also be gb9116-88dn80, DN100, pn2mpa. The flange diaphragm materials are Hastelloy, tantalum, etc., which can be used in corrosive media.
Structural materials
Flange and bolt: stainless steel 316;
Filling liquid: silicone oil and inert liquid;
Electrical connection: 1/2npt or M20 × 1.5；
Isolation diaphragm: stainless steel 316, Hastelloy C, Monel, tantalum;
"O" ring: (at the contact with the measured medium) fluororubber
| code | Mounting flange dimensions | Pressure rating |
Material Science |
| A | DN80(3″) | 150Lb | SS |
| B | DN100(4″) | 150Lb | SS |
| C | DN80(3″) | 300Lb | SS |
| D | DN100(4″) | 300Lb | SS |
| T | special requirements | ||
| code | Low voltage side structure |
LP side flange joint |
Drain / vent valve | Low pressure side liquid connection isolation diaphragm |
| 22 |
differential pressure |
316SS | 316SS | 316SS |
| 23 | differential | 316SS | 316SS | Hastelloy CC |
| 24 | pressure | 316SS | 316SS | Monel alloy |
| 25 | differential | 316SS | 316SS | tantalum |
| 33 | pressure | Hastelloy C | Hastelloy C | Hastelloy C |
| 35 | differential | Hastelloy C | Hastelloy C | tantalum |
| T | Distant transmission | See PFW, RTW, RFW and EFW model selection table for remote flange model | ||
