| Brand Name: | OEM |
| Model Number: | ST9G-1KW/220V |
| MOQ: | 1 pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS / month |
Electrostatic precipitator accessories heater porcelain shaft porcelain sleeve insulation heating pipe dust removal ash

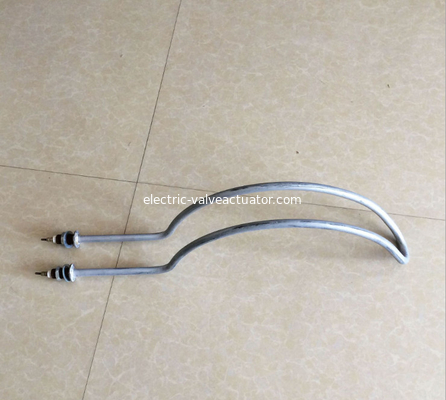

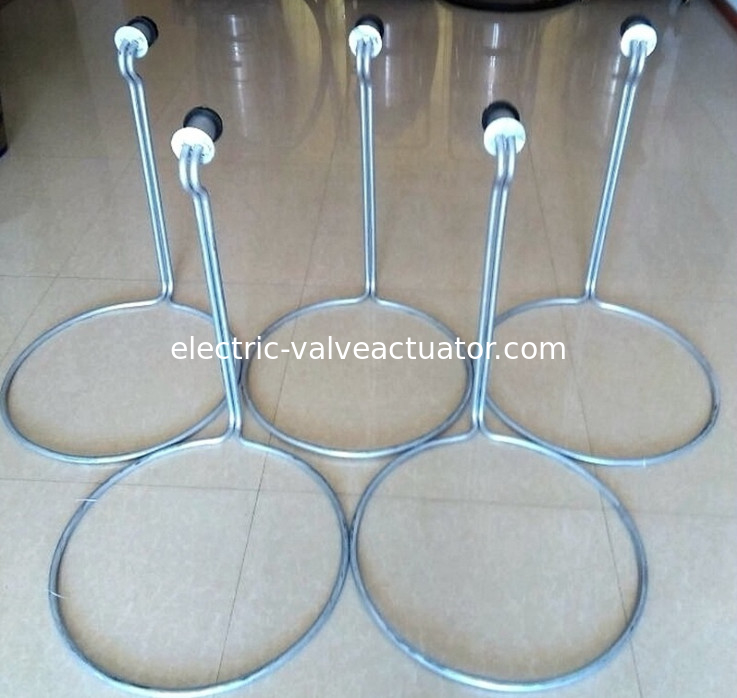

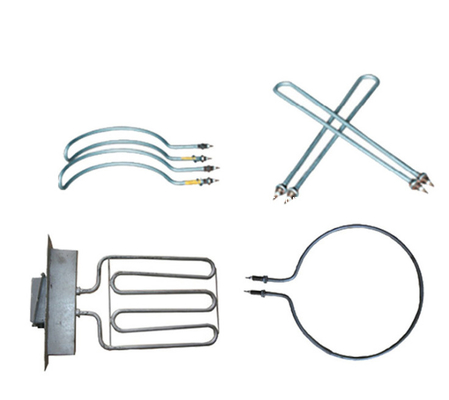

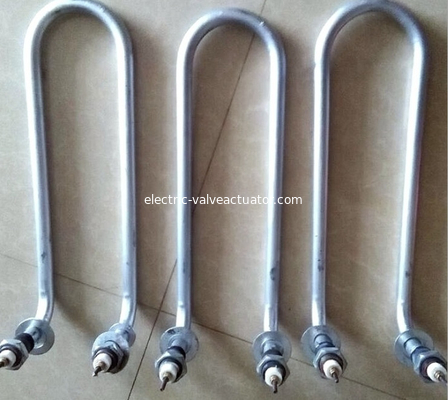

Ash bucket electric heater is used inside ESP ash hopper, to prevent the ash hopper ash condensation and harden , in order to ash difficult . Its working principle is put metal wire resistance in to a metal pipe . and in the gap part tightly filled with good thermal conductivity and dielectric properties of magnesium oxide from. It can be bent into any desired form , Installed in the air channel, Used for heating the air , it can also be immersed in water or other liquid is used for heating water or other liquids , and placed directly on the solid metal heating metal , It has the advantages of simple structure, high thermal efficiency , good safety, durability and light, at present in our country has all kinds of industry equipment in use . Products fit to technical requirements of TB/T2379-93
Cathode ceramic shaft electric heater
ash bucket electric heater
insulator compartment electric heater
Porcelain electric heater
Porcelain insulator electric heater
Casing tube electric heater
T4.1.9B,ST9G-1KW/220V ,
ST9G-1.5KW/220V ,
ST11G-1.5KW/220V
ST9G-1KW/380V,
ST9G-1.5KW/380V ,
ST11G-1.5KW/380V ,
ST9G-1KW/415V ,
ST9G-1.5KW/415V ,
ST11G-1.5KW/220V,
ST11G-1.5KW/380V
ST11G-1.5KW/415V
Model: FT11G/ST11G
Working voltage: 380V
Power: 0.5KW-10KW
Insulation resistance: 10M
Dielectric strength: 1000V
Unit: KW
Outline dimensions: 500X720X16
Temperature range: 0-450
Use: Heater
Weight: 10KG
Maximum heating weight: 8KG
Continuous service life: 100000H
