| Brand Name: | NORGREN |
| Model Number: | R74G-4GK-RMN |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

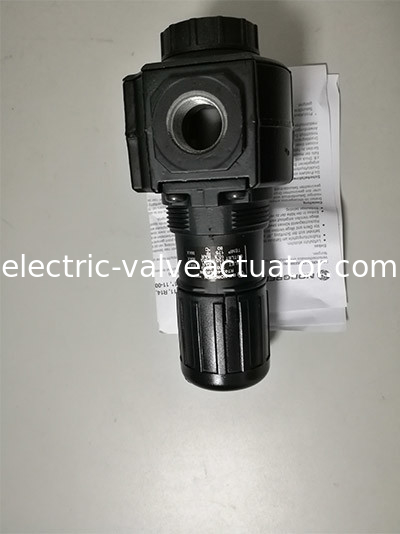

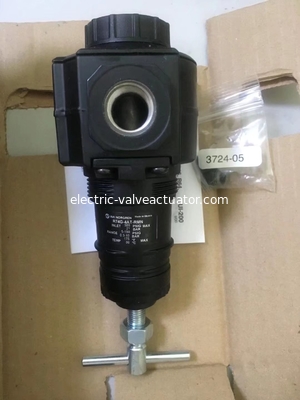

Air source regulator , R74G-4GK-RMN pressure adjusting valve IMI NORGREN HERION
Pressure reducing valve r74g-4gk-rmn
Pressure relief valve
Products:
G1/2'' R74G-4GK-RMN
Including pressure gauge model : r74g-4gk-rmg
characteristic
·The excelon design allows tubular or modular installation
·The balance valve is designed for optimal pressure control
·The standard overflow type pressure reducing valve can reduce the downstream pressure even if one end of the system is sealed
·Press locking adjusting knob with protective cover
Medium: compressed air
working temperature: -20 ... 80 °C
overflow / non overflow: Overflow
pressure gauge: Without
pressure gauge interface: Rc1/8
adjusting knob: Acetal resin
thermoplastic elastomer: Nitrile rubber
main body: aluminium
valve cover: aluminium
Brand: Excelon
flow: 220.0 scfm
| Connector | G 1/2 |
| min. output | 0.3bar |
| max. output | 10bar |
| maz. input | 20bar |
| Series | R74G |
| pressure gauge connector | Rc 1/8 |
| connector thread size | 1/2 in |
| pressure gauge connector | 1/8 in. |
| max. flow rate | 105L/s |
| inner single direction valve | no check valve |
| connector thread standard | G |
| min. working temperature | -34°C |
| working temperature | +80°C |
| R74G2ATRMN | R74G-4GK-RFN |
| R74G-3AK-RMG | R74G4GKRMN |
| R74G-3AK-RMN | R74G-4GK-RSN |
| R74G-3AT-RSN | R74G-4GT-NSN |
| R74G3GKNMN | R74G-4GT-RSN |
| R74G-3GK-RFN | R74G6AKRMG |
| R74G-3GK-RMN | R74G6AKRMN |
| R74G-3GT-RSN | R74G6ATRSG |
| R74G-4AK-NFN | R74G6BKRMN |
| R74G-4AK-RMG | R74G6GKNMN |
| R74G4AKRMN | R74G-6GK-RFN |
| R74G-4AT-RMN | R74G6GKRMN |
| R74G-4AT-RSG | R74G6GTNSN |
| R74G-4AT-RSN | R74G6GTRSN |
| R74G-4BK-RMN | R74R-3GK-RMN |
| R74G4GKNMG | R74R-3GT-RSN |
| R74G4GKNMN | R74R-4GK-RMN |
