| Brand Name: | NORGREN |
| Model Number: | SXE9575-Z70-80/33N |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

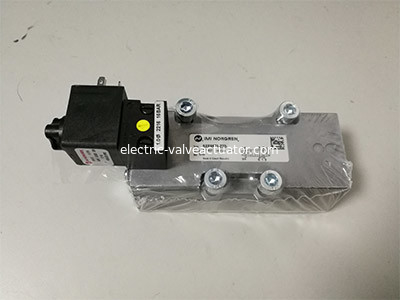

ISO solenoid valve SXE9575-Z70-80/33N IMI NORGREN 3 way 2 port
ISO solenoid valve sxe9575-z70-80 / 33n release time: June 20, 2018 Click: 1266 times edit: admin
ISO Star Series
Solenoid pilot valve and air control valve
Floor type
ISO 5599-1
5/2, 5/3, ISO #1 … ISO #3
Special coating metal sealing valve core and valve sleeve
Fault free and long life operation
Iso#1 and iso#2 valves with integral flow regulating valve
Standard low power solenoid with manual control

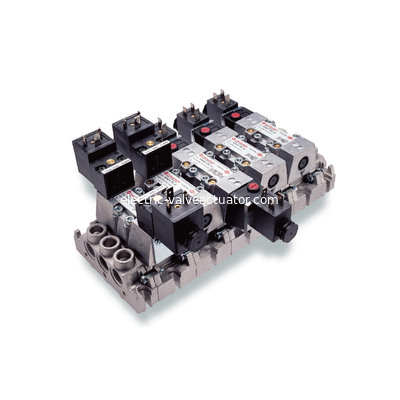

Rich base plate and accessories
Technical parameters
Media:
Filtered lubricated or unlubricated compressed dry gas
working pressure:
Up to 16 bar, see table on the right
Flow:
ISO #1 1230 l/min
ISO #2 2450 l/min
ISO #3 4400 l/min
Ambient temperature:
-15 ° C to + 50 ° C electric control valve
-15 ° C to + 80 ° C air control valve
Please consult the technical service department of the company when using under + 2 ° C.
Material Science
Valve body: cast aluminum
Spool and sleeve: hard anodized aluminum with special coating
Seal: nitrile rubber
Media: compressed air
Drive: forty-one thousand and thirty-two
Start: Electronic control / electronic control
Function: Middle discharge type
Voltage: 24Vdc
High working pressure: 16.0 bar
working pressure: 2 ... 10 bar
Operating temperature: - 15 ... 80 °C
ISO size: ISO #2
Electrical connections: 22mm industrial standard
forerunner: inside
Manual control: Locking device
Degree of protection: IP65
Standard: ISO 5599-1; VDMA 24 345
Junction box type: 22mm industrial standard
Coil power: 2.0 Watt/VAC
Material - nuts and screws: Galvanized steel
seal up: Rubber; Heat resistant seal
Main body: Die cast aluminum
Spool and sleeve: Anodized aluminum with special coating
| SXE9575-A75-01K | SXE9575-Z70-80K | SXE9575-Z71-81/86N |
| SXE9575-A76-00/13J | SXE9575-Z70-81/33N | SXE9575-Z71-81/88N |
| SXE9575-A76-00K | SXE9575-Z70-81/88N | SXE9575-Z71-81/89N |
| SXE9575-Z70-00K | SXE9575-Z70-81/89N | SXE9575-Z71-83/33N |
| SXE9575-Z70-60/13J | SXE9575-Z70-83/33N | SXE9575-Z75-00K |
| SXE9575-Z70-60/18J | SXE9575-Z71-00K | SXE9575-Z75-60/13J |
| SXE9575-Z70-60/19J | SXE9575-Z71-60/13J | SXE9575-Z75-60/23N |
| SXE9575-Z70-60/23N | SXE9575-Z71-60/19J | SXE9575-Z75-61/23N |
| SXE9575-Z70-60/26N | SXE9575-Z71-60/23N | SXE9575-Z75-80/33N |
| SXE9575-Z70-60/28N | SXE9575-Z71-61/13J | SXE9575-Z75-81/33N |
| SXE9575-Z70-60/29N | SXE9575-Z71-61/18J | SXE9575-Z76-00K |
| SXE9575-Z70-61/13J | SXE9575-Z71-61/19J | SXE9575-Z76-60/13J |
| SXE9575-Z70-61/23N | SXE9575-Z71-61/23N | SXE9575-Z76-60/23N |
| SXE9575-Z70-61/28N | SXE9575-Z71-61/28N | SXE9575-Z76-61/23N |
| SXE9575-Z70-62/19J | SXE9575-Z71-61K | SXE9575-Z76-80/33N |
| SXE9575-Z70-80/33N | SXE9575-Z71-80/33N | SXE9575-Z76-80/35N |
| SXE9575-Z70-80/88N | SXE9575-Z71-81/33N | SXE9575-Z76-81/33N |
| SXE9575-Z70-80/89N | SXE9575-Z71-81/83W | SXE9575-Z76-81/88N |
| SXE9575-Z76-81/89N | SXE9661-160-00K |
