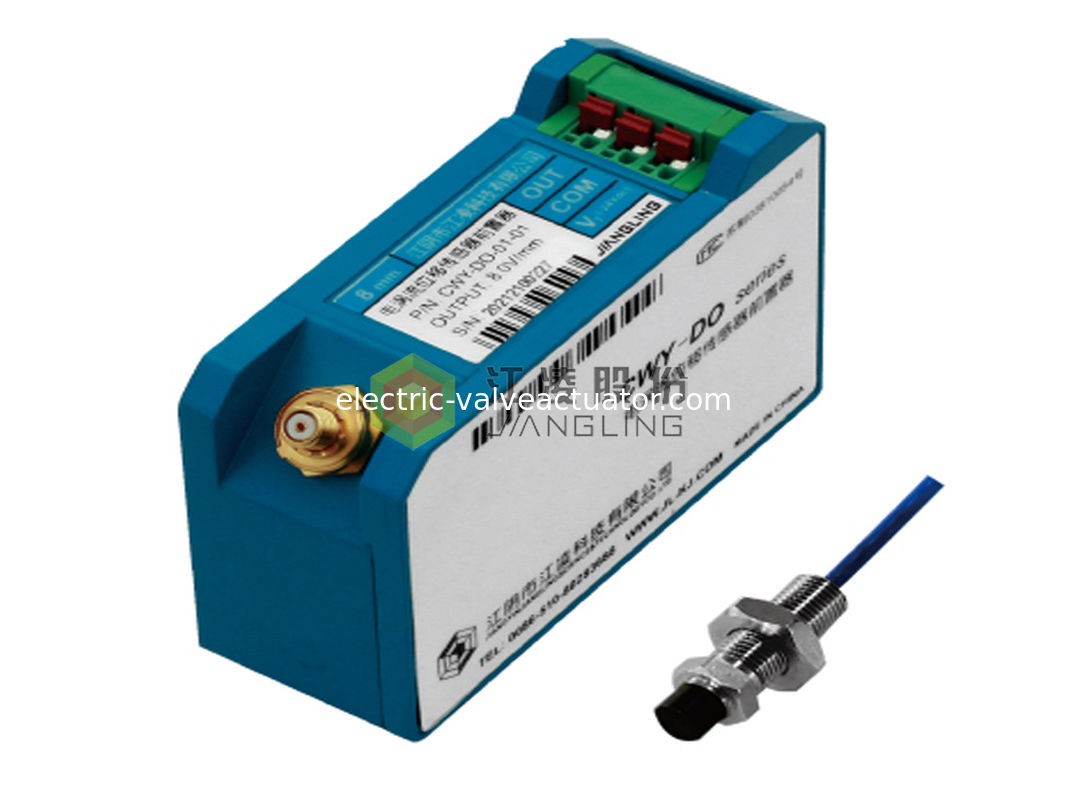

CWY-DO Electric eddy current sensor
System description
• Rail mounting
• cast aluminum housing
• Degree of protection IP67
Technical parameters
| Probe diameter | φ8mm | φ11mm | φ18mm | φ25mm |
| Linear range mm | 2mm | 4mm | 8mm | 10mm |
| Sensitivity | 8V/mm | 4 V/mm | 1.5 V/mm | 0.8V/mm |
| Linear error | ≤±1% | |||
| Frequency response | 0～10KHz | |||
| Power supply | DC -24V | |||
| Environment temperature |
Probe temperature -30℃～120℃/ extension cable -30℃～120℃/ proxi-mitor - 30℃～70℃ |
|||
| Mounting thread | To the order guide | |||
| Probe cable length | To the order guide | |||
| System cable length | To the order guide | |||
Note : the probe mounting brackets have sufficient rigidity to prevent its natural frequency and rigidity caused deformation measurement error .
Order Guide:
| Order No. | Probe specifications A | Thread size B | No screw thread length C | Screw length D | Probe cable / extension cable selection E | Proof requirements F |
|
CWY-DO–
|
1:φ8mm | 1:M10×1.0mm* n:special requirement |
1:5mm* 2:10mm 3:15mm 4:20mm n:special requirement |
1:30mm* 2:40mm 3:50mm 4:60mm n:special requirement |
2:1m+4m no metal shielding * 6:1m+8m no metal shielding 7:0.5m+8.5m metal shielding |
1:explosion proof 2:no explosion proof* |
| 2:φ11mm | 1:M14×1.5mm* n:special requirement |
|||||
| 3:φ18mm | 1:M25×1.5mm* n:special requirement |
|||||
| 4:φ25mm | 1:M30×2mm* n:special requirement |
Note : The specific requirements should be provided for special model selection .
