| Brand Name: | JIANGLING |
| Model Number: | ZHJ-2 |
| MOQ: | 1 set |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |

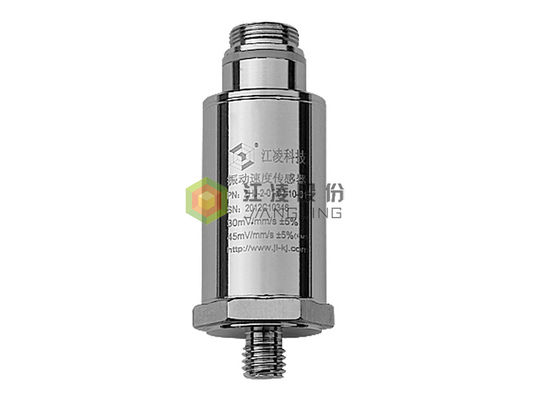

ZHJ-2 piezoelectric type speed sensor
System description
• Magnetic electric induction principle
• two wire structure
• without external power supply
Technical parameters
| Order No. | ZHJ-2 vibration speed sensor |
| Sensitivity | 30mV/mm/s |
| Measuring range | 2mm |
| Outline dimension | φ31×68mm |
| Fixed screw hole | To the order guide |
| Frequency response | 10 ～200Hz |
| Transmission distance | L 305m |
| Environment temperature | -40～+70℃(the high temperature -40～+150℃) relative humidity: ≤90% |
Order Guide:
| Order No. | The selection of range A | Install screw B | Cable selection C | Expand D |
|
ZHJ-2-
Vibration speed sensor |
1:M10×1.5×10(长)* n:special requirement |
1:plug type interface * 2:direct connection type n:special requirement |
1:2m metal shielding 2:5m metal shielding 4:2m Non metal shielding * 6:10m non metal shielding |
0:NO |
Note :The specific requirements should be provided for special model selection
