| Brand Name: | OEM |
| Model Number: | XDZ-1 |
| MOQ: | 1 set |
| Payment Terms: | T/T |
| Supply Ability: | 200 |

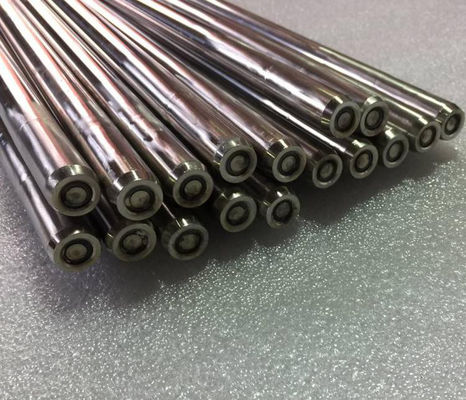

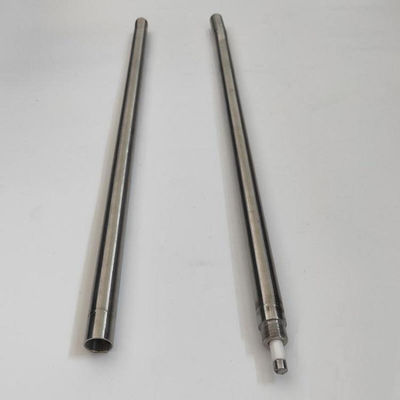

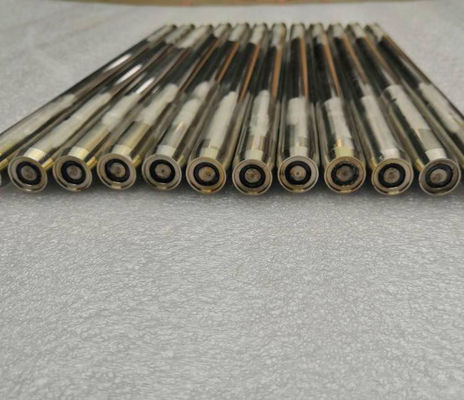

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V
1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head
2,Technical advantages and honor- Low ignition voltage；- Good temperature resistance；- Safety and reliability, strong ability to resist pollution
Applications:
As XDH high-energy ignition device assembly.
Specifications:
Product model and series
1. Product series
| Sr. | Model | Description |
| 1 | XDZ-1-l/d | Standard type hard rod high energy ignition gun |
| 2 | XDZ-1-l/d B | Standard type hard rod explosion-proof high-energy igniting gun |
| 3 | XDZ-1-l/d K | Standard type hard gun handle high energy ignition gun |
| 4 | XDZ-1R-l/d | Standard type soft rod high energy ignition gun |
| 5 | XDZ-1R-l/d B | Standard type soft rod explosion-proof high-energy igniting gun |
| 6 | XDZ-2-l/d | Non standard hard rod high energy ignition gun |
| 7 | XDZ-2-l/d B | Non standard hard rod explosion-proof high-energy igniting gun |
| 8 | XDZ-2R-l/d | Non standard soft rod high energy ignition gun |
| 9 | XDZ-2R-l/d B | Non standard soft rod explosion-proof high-energy igniting gun |
| 10 | XDZ-3-l/d | Special electric nozzle high-energy igniting gun |
| 11 | XDZ-3-l/d B | Explosion proof special electric nozzle high-energy igniting gun |
| 12 | XDZ-4-l/d B | The hard rod high clearance point guns |
【Note 】
①In the table type codelis igniting gun length, in order to unit mm；
②In the table d is igniting gun diameter ,there are 14mm,16mm,18mm series to choose；
③ according user demanding to special design and produce.
Outline and mounting dimensions
Drawing 3-1,XDZ-1- l／18 Standard type hard rod high energy ignition gun(L≤1000mm)
Drawing 3-2,XDZ-1-l／18 Standard type hard rod high energy ignition gun(L＞1000mm)
Drawing 3-3,XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun
Drawing 3-4,XDZ-1- l／18 K Standard type hard gun handle high energy ignition gun
Drawing 3-5,XDZ-1R-l／18 Standard type soft rod high energy ignition gun
3-6,XDZ-3 Catalytic plug ignition gun
Drawing 3-7,XDZ-4-l／d hard rod high pressure gap ignition gun
