| Brand Name: | shanghai |
| Model Number: | DN15/20//25/32/40/50 1inch 1.2inch 1.5inch 2inch |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

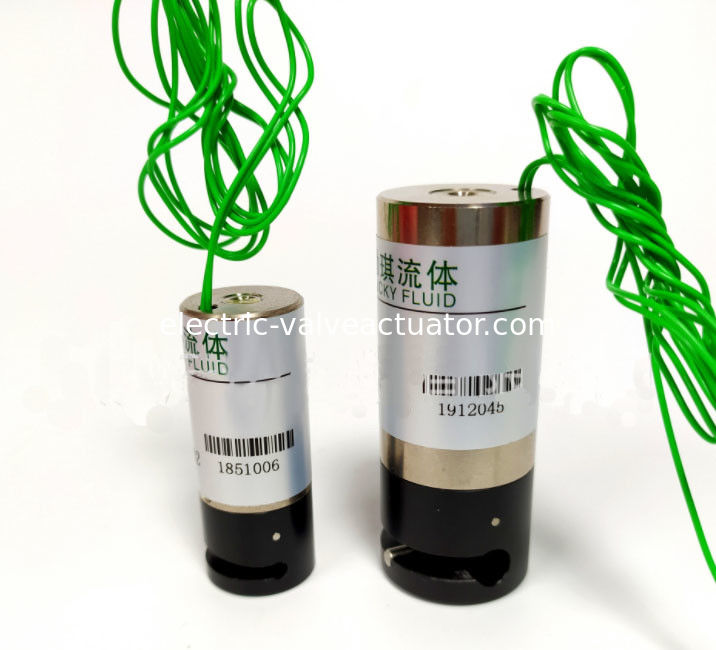

HP series pin ch valve Electromagnetic pinch valve for batching system and weighing system
Pinch Valves allow flow passage through a flexible tube which is “pinched” off to produce a tight seal. Only the easily replaceable tubing comes into contact with the fluid, making this style of valve ideal for applications requiring frequent changes of the flow path. Pinch Valves have zero dead volume and are highly tolerant of particulates in the fluid stream.
| Model | Power | Valve state | Soft tube out dia | Soft tube inner dia | pressure |
| HP20-1NC32 | 3W | 12V NC | 1/8 3.2mm | 1/16 1.6mm | 15PSI |
| HP20-2NC32 | 24V NC | ||||
| HP20-1NO32 | 12V NO | ||||
| HP20-2NO32 | 24V NO | ||||
| HP20-1T32 | 4W | 12V 1NO 1NC | |||
| HP20-2T32 | 24V 1NO 1NC |
