| Brand Name: | shanghai |
| Model Number: | DMF-ZM |
| MOQ: | 1 |
| Price: | contact |
| Payment Terms: | TT |
| Supply Ability: | 100unit / month |

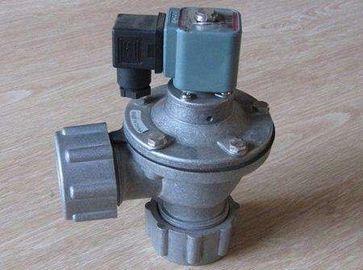

DMF-ZM Dust Collector Pulse Jet Valve Water Air Pulse Solenoid Valve Right angle solenoid pulse valve with nut
DMF-ZM type electromagnetic pulse valve input port and an output port angle is 90 DEG angle valve, the input and output for external thread, and is equipped with a pressing nut, gas tank (gas) on spools or blowing Z directly inserted in the valve of the input and output of conical sealing ring and tighten nut,convenient installation, smooth airflow, provides an ideal cleaning Qimai,applicable to all kinds of filter element cleaning.
| Operating pressure | 0.2~0.6MPa |
| Working medium | Clean air |
| Voltage | DC24V AC110V AC220V(士10%) |
| Current | 1A 0.46A 0.23A |
| Temperature level | 1.25℃~80℃(-13℉~176℉) 2.25℃~23℃(-13℉~446℉) |
| Relative humidity of air | relative humidity ≤85% |
| Degree of protection | IP65 |
| Diaphragm life | above than 100million times ,or 3-5years |
| Body | ADC12 aluminum alloy |
| Clamp spring | 304stainless steel |
| Pilot component | 4430FR stainless steel,etc |
| Diaphragm | Nitrite rubber/fluororubber(high-temperature valve) |
| Spring | 304 stainless steel |
| Fastener | 302 stainless steel |
Diaphragm with the top end of the film, the quality and import comparable, super tensile, each piece of the film are strictly detectedbefore entering the assembly line, the assembly after each finished product valve testing, the indicators are all qualified before the factory
